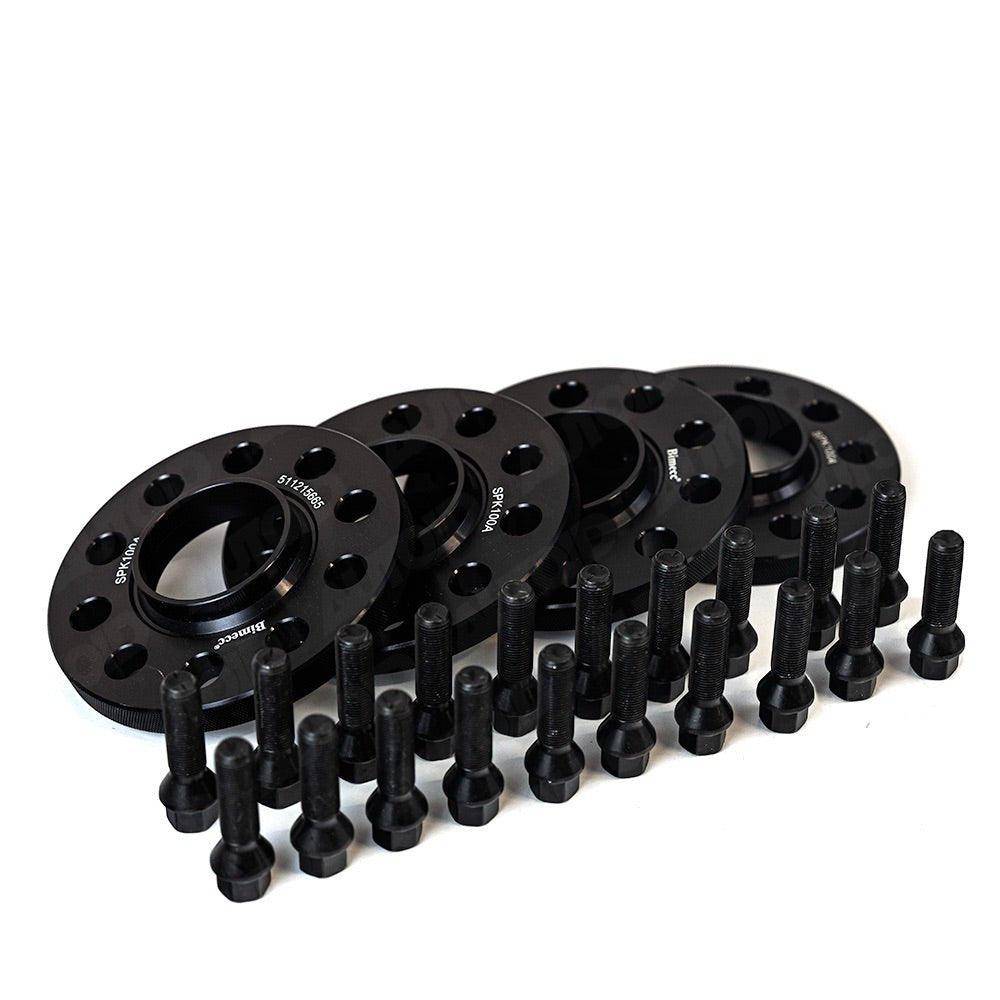

Bimecc wheel spacer kit with matching bolts, representative complete setup

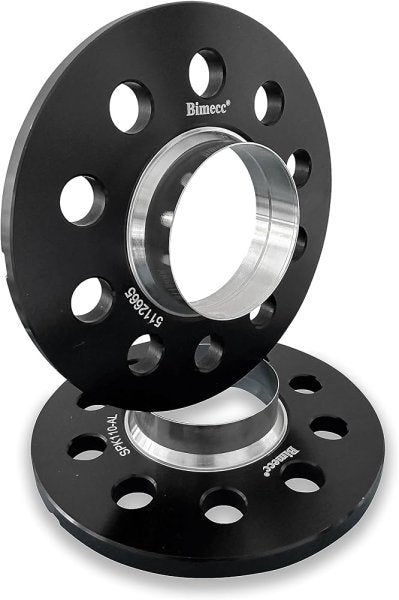

Bimecc Audi Q5, Q7, Q8 and Volkswagen Touareg 5x112 wheel spacers with 66.6 mm centre bore

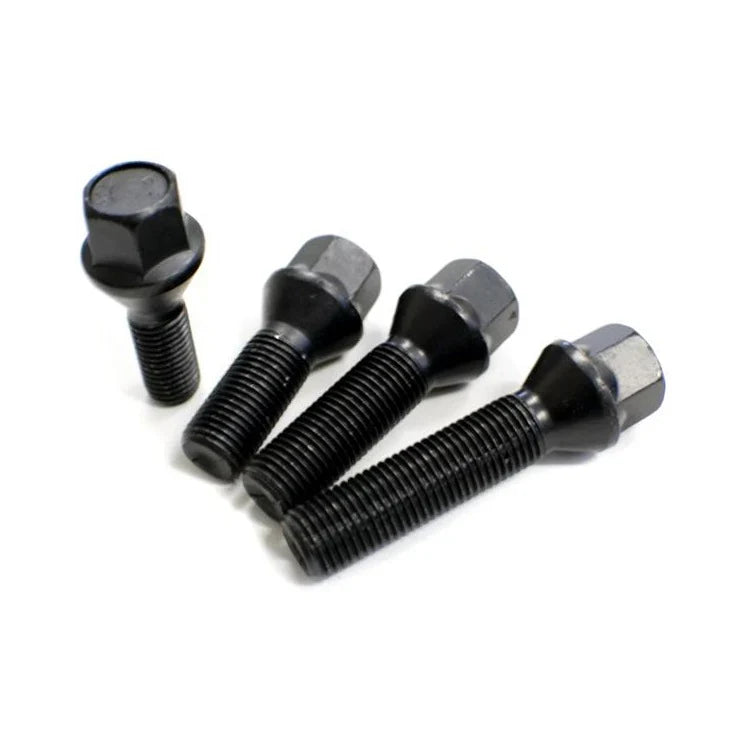

Bimecc wheel bolts, representative component photo

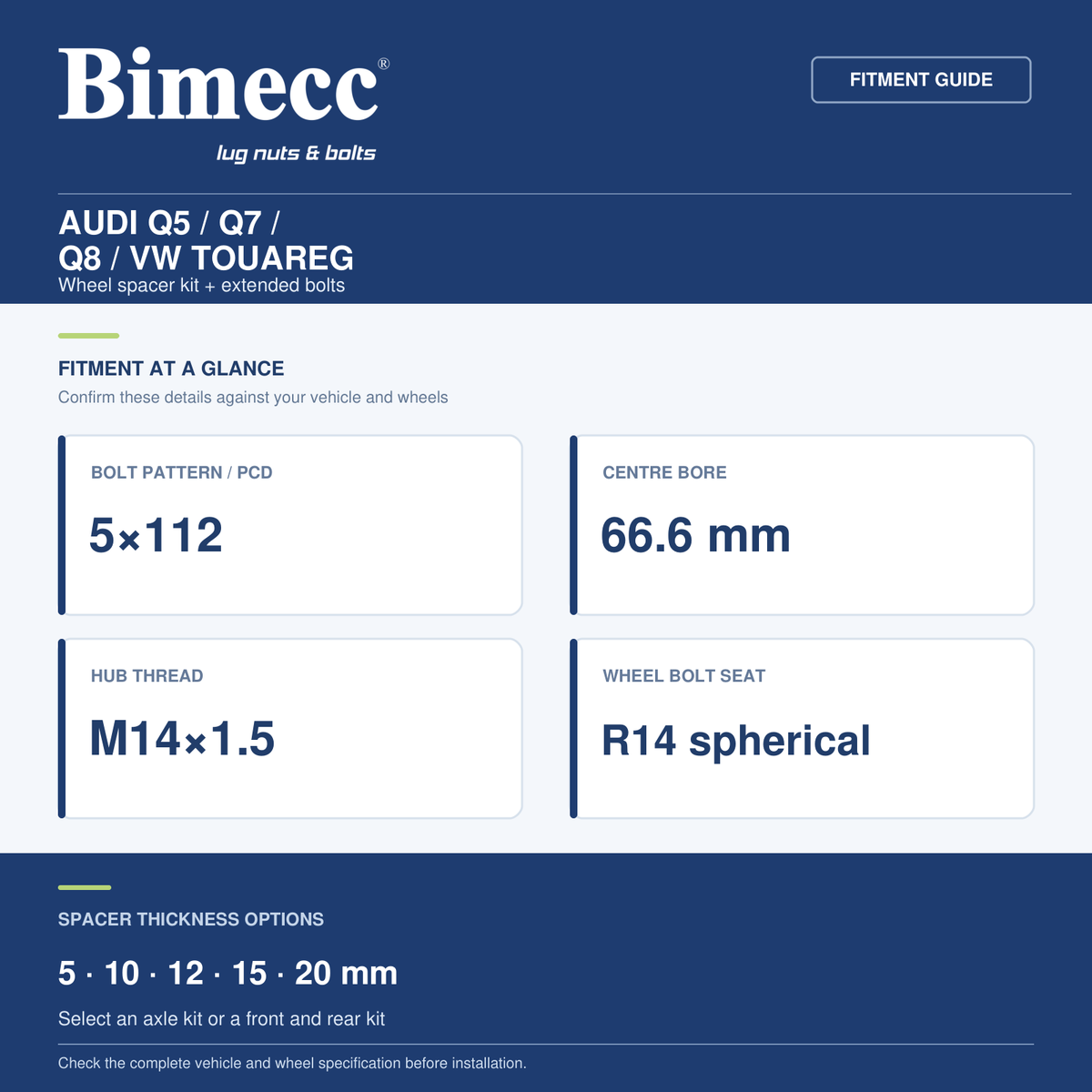

Bimecc VAG Large SUV Wheel Spacer Kit - Audi Q5 / Q7 / Q8 / VW Touareg 5x112 / 66.6 — Bimecc branded fitment and specification guide
Bimecc wheel spacer kit with matching bolts, representative complete setup
Bimecc Audi Q5, Q7, Q8 and Volkswagen Touareg 5x112 wheel spacers with 66.6 mm centre bore
Bimecc wheel bolts, representative component photo
Bimecc VAG Large SUV Wheel Spacer Kit - Audi Q5 / Q7 / Q8 / VW Touareg 5x112 / 66.6 — Bimecc branded fitment and specification guide

Bimecc VAG Large SUV Wheel Spacer Kit - Audi Q5 / Q7 / Q8 / VW Touareg 5x112 / 66.6

$215.95 Sale • Save

Choose the required thickness for each axle. Selecting “None” means no spacer kit is supplied for that axle.

Front Spacer 5mm
Rear Spacer None
i

Item is in stock Preorder: Approx 2 weeksOnly 0 left in stock Item is out of stock Item is unavailable

Adding to Cart Added to Cart

GST included. Shipping calculated at checkout.

Check fitment before ordering
  • Match the bolt pattern (PCD) and centre bore, then check wheel and body clearance for your chosen spacer thickness.
  • Confirm the hub thread, wheel seat type and required fastener length. Aftermarket wheels may use a different seat from the original wheels.
  • Use the product description and specification guide to confirm your setup. Have safety-critical wheel hardware fitted and checked by a competent technician.
How does this preorder work?

This item is available to order before the incoming shipment arrives. Expected dispatch is approximately 1–2 weeks, subject to arrival timing. This is a dispatch estimate, not a delivery promise; transit time is additional.

Unsure which option fits? Ask us before ordering.

DESCRIPTION

Application-specific Bimecc wheel spacer kit for Audi Q5/SQ5 (8R/FY), Q7/Q8 (4M) and Volkswagen Touareg (CR) applications using 5x112 PCD, 66.6 mm centre bore and R14 spherical-seat wheel bolts. Spacer thickness is selected independently for the front and rear, with extended wheel bolts matched to each selected thickness.

Bring the wheels closer to the arch line and give the vehicle a more purposeful stance without having to source the matching hardware separately. The selected Bimecc setup combines application-specific spacer dimensions with extended wheel bolts chosen for each thickness, making front-only, rear-only or staggered front-and-rear combinations straightforward.

Why choose this Bimecc Spacer Kit?

  • Sharper stance: move the wheels outward by the selected amount to better fill the arches.
  • Useful measured clearance: spacing can help create room around suspension or brake components when the full wheel and tyre package is checked correctly.
  • Matched extended hardware: bolt length is selected around the chosen spacer thickness, thread and wheel-seat requirement.
  • Flexible axle setup: choose the front and rear thicknesses independently rather than accepting a fixed combination.

Fitment and Specification

  • Application: Audi Q5/SQ5 (8R/FY), Q7/Q8 (4M) and Volkswagen Touareg (CR) with the listed 5x112 / 66.6 mm specification
  • PCD: 5x112
  • Centre bore: 66.6 mm
  • Thread: M14x1.5
  • Seat: R14 spherical

What is Included

  • One Axle: choose a front thickness and “None” for the rear where offered; this supplies two spacers and ten matching extended bolts.
  • Front and Rear: choose both thicknesses; this supplies four spacers and twenty matching extended bolts.
  • Available Thicknesses: 5mm, 10mm, 12mm, 15mm, 20mm.

Generation Note: Audi Q7 4L and Volkswagen Touareg 7L/7P use the separate 5x130 / 71.6 mm spacer-kit range; this 5x112 kit is for the compatible later fitments listed above.

Fitment Note: Confirm PCD, centre bore, wheel-hardware thread and seat, brake/wheel clearance and safe thread engagement before installation. Aftermarket wheels can use a different seat from the factory wheel.

Installation: Wheel spacers and fasteners are safety-critical components. Installation should be completed by a competent technician, tightened to the vehicle/wheel manufacturer’s specification and rechecked after the initial bedding-in period.

Images show the product family and may show one size or finish from the range. The selected variant determines the exact supplied specification.
