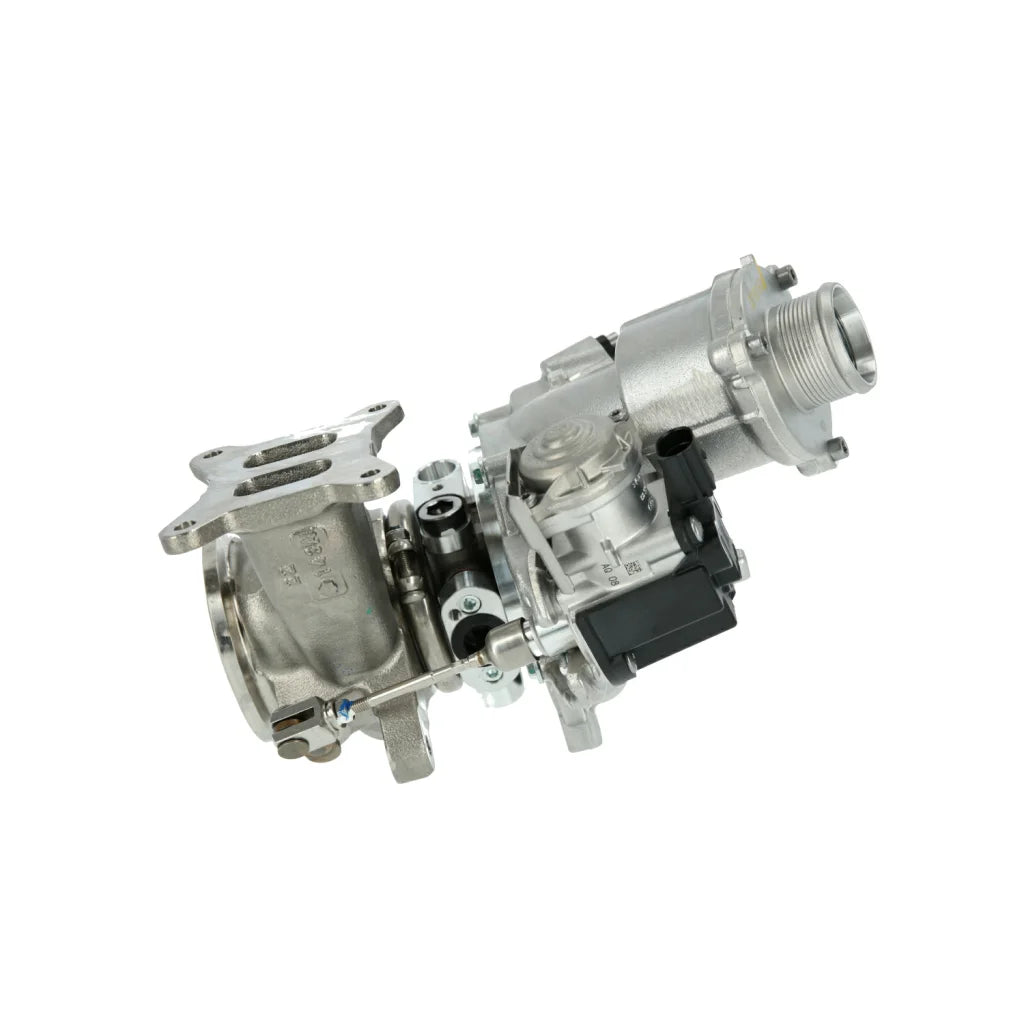

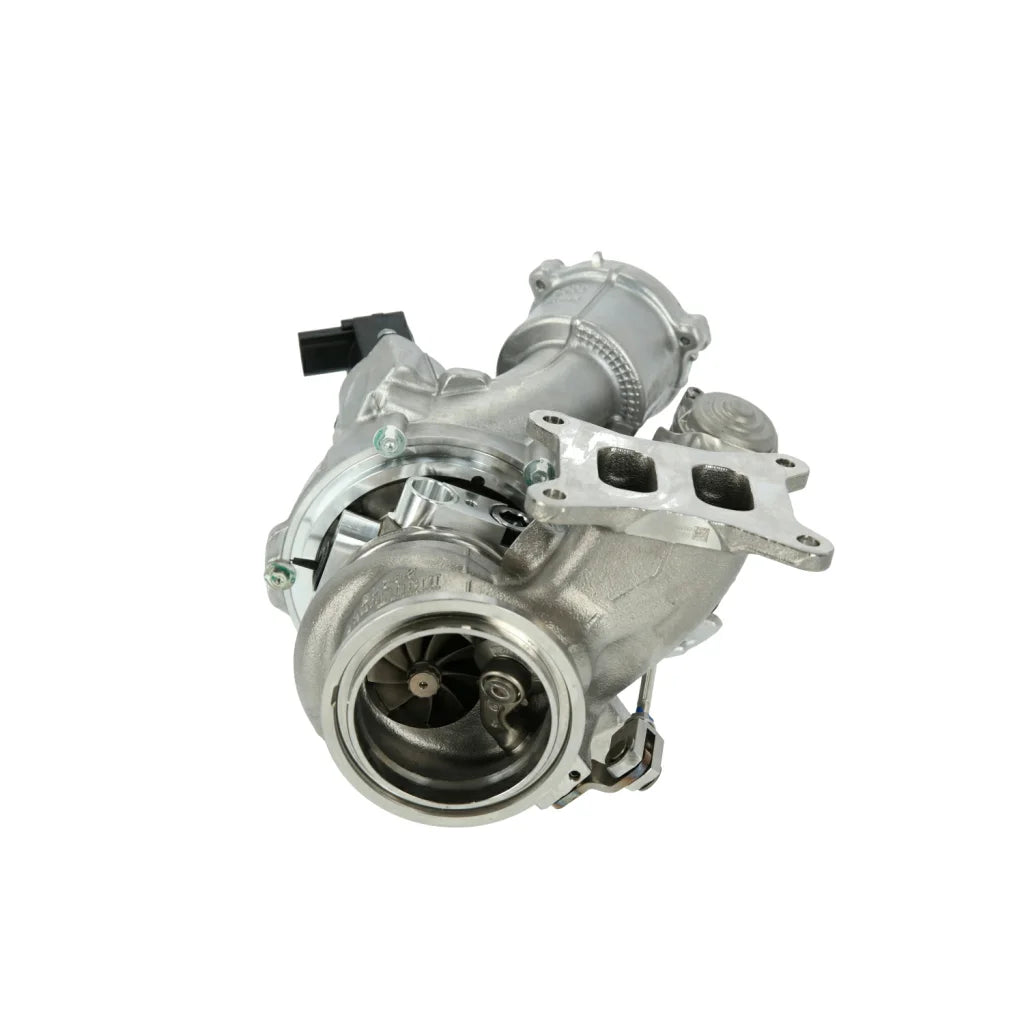

Ladermanufaktur LM500 Gen2 for VW/Audi 2.0L TSI EA888 Gen.3 MQB

The LM500gen2 turbocharger from Ladermanufaktur offers outstanding performance and durability in a plug & play solution for the 2.0L TSI EA888 Gen.3 MQB engine.

This turbocharger delivers up to 530+ hp and is optimized by converting it to an LM compressor wheel and a 9-blade high-flow turbine. The LM Motorsport bearing and sealing systems, as well as the machining of the compressor and exhaust housing, ensure fast response and superior stability.

The charger manufacturer produces this turbocharger in Germany and meets the highest standards such as the 14001:2015 and DIN EN ISO 9001 certifications. The LM500gen2 turbocharger fits perfectly in vehicles such as the Golf 7/7.5 R, GTI, Cupra 280 300, Octavia RS, AUDI S3 and many other models.

This turbocharger produces 500 hp under normal conditions and reaches an impressive 530+ hp at peak. Thanks to the LM HighPerformance Core, it's extremely stable, while the LM RapidResponse Spool ensures maximum power and a wide rev range.

The LM500gen2 comes with a matching gasket and is easy to install thanks to adapters for any pipe size. For optimal performance, we recommend a software upgrade as well as a larger downpipe, intake, high-pressure pump, and intercooler.

Discover a new dimension of performance for your 2.0L TSI EA888 Gen.3 MQB engine with the LM500gen2 turbocharger from Ladermanufaktur. Maximum power and impressive everyday usability make this turbocharger the perfect choice for your vehicle upgrade plans!

• Up to 530+ hp

• Conversion to LM compressor wheel

• 9 blade high-flow turbine

• LM Motorsport bearing and sealing system

• Machined compressor and exhaust housing

• Fast response behaviour

Option 1: New Turbocharger
In this case, your existing turbocharger does not need to be sent in, as a completely new turbocharger will be delivered. You can keep your existing turbocharger.

Option 2: Rebuilt Turbocharger (Core Deposit - $1,976.00 + shipping)
Here, you send in your OE/OEM turbocharger, which will be rebuilt. This assumes that the turbocharger housing is not defective. See all details about core deposit requirements in the description below.

Please check the compatibility of your vehicle and engine before confirming your order. If your turbo doesn't match the part number below this is not for your vehicle. Refunds will not be given for incorrectly chosen products. If you are unsure about fitment, please contact us.

• Audi A1 / S1 8X | BJ 2010-2018 2.0L TSI (EA888 Gen.3) MQB) CWZA | 231 PS

• Audi A1 / S1 GB | BJ 2018+ 2.0L TFSI (EA888) DKZC | 200 PS

• Audi A3 / S3 / RS3 8V | BJ 2012+ 1.8L TFSI (EA888 Gen.3 MQB) CJSA | 180 PS

• Audi A3 / S3 / RS3 8V | BJ 2012+ 1.8L TFSI (EA888 Gen.3 MQB) CJSB | 180 PS

• Audi A3 / S3 / RS3 8V | BJ 2012+ 2.0L TFSI (EA888 Gen.3 MQB) CJXC | 300 HP

• Audi A3 / S3 / RS3 8V | BJ 2012+ 2.0L TFSI (EA888 Gen.3 MQB) CJXG | 310 PS

• Audi A3 / S3 / RS3 8V | BJ 2012+ 2.0L TFSI (EA888 Gen.3 MQB) CZPB | 190 PS

• Audi A3 / S3 / RS3 8V | BJ 2012+ 2.0L TFSI (EA888 Gen.3 MQB) DJHA | 310 PS

• Audi A4 / S4 / RS4 B8 (Type 8K) | BJ 2007-2015 2.0L TFSI (EA888) CAEA | 180 PS

• Audi A4 / S4 / RS4 B8 (Type 8K) | BJ 2007-2015 2.0L TFSI (EA888) CAEB | 211 PS

• Audi A4 / S4 / RS4 B8 (Type 8K) | BJ 2007-2015 2.0L TFSI (EA888) CDNB | 180 PS

• Audi A4 / S4 / RS4 B8 (Type 8K) | BJ 2007-2015 2.0L TFSI (EA888) CDNC | 211 PS

• Audi A4 / S4 / RS4 B8 (Type 8K) | BJ 2007-2015 2.0L TFSI (EA888) CFKA | 180 PS

• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CDNB | 180 PS

• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CESA | 211 PS (CA and USA)

• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CUHA | 224 PS (CA and USA)

• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYNB | 252 PS

• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYPA | 252 PS

• Audi Q2 / SQ2 GA | BJ 2016+ 2.0L TFSI (EA888) CZPB | 190 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CADA | 211 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CAEB | 211 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNB | 180 hp

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNC | 211 hp

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDZA | 180 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNBC | 180 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCB | 180 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCD | 225 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCE | 230 PS

• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CPMA | 211 PS

• Audi TT / TTS / TT RS FV/8S | BJ 2014+ 1.8L TFSI (EA888 Gen.3) CJSB | 180 PS

• Audi TT / TTS / TT RS FV/8S | BJ 2014+ 2.0L TFSI (EA888 Gen.3) CHHC | 230 PS

• Audi TT / TTS / TT RS FV/8S | BJ 2014+ 2.0L TFSI (EA888 Gen.3) CJXG | 310 PS

• Seat Ateca I | BJ 2016+ 2.0L TSI (EA888 Gen.3 MQB) DKZA | 190 PS with OPF

• Seat Ateca I | BJ 2016+ 2.0L TSI (EA888 Gen.3 MQB) DNUE | 300 HP

• Seat Exeo I (Type 3R) | BJ 2008-2013 2.0L TFSI (EA113, EA888) CDND | 210 PS

• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3) MQB) CJXA | 280 HP

• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3) MQB) CJXC | 300 HP

• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3) MQB) CJXE | 265 PS

• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen3) MQB) CJXG | 310 PS

• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3) MQB) CJXH | 290 HP

• VW Golf VII (Type AU) | Year 2012-2019 1.8L TSI (EA888) CJSB | 180 PS

• VW Golf VII (Type AU) | Year 2012-2019 1.8L TSI (EA888) CXB | 172 PS

• VW Golf VII (Type AU) | Year 2012-2019 1.8L TSI (EA888) CXBB | 172 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CHHA | 230 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CHHB | 220 HP

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CJXC | 300 HP

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CJXC | 360 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CJXE | 265 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CJXG | 310 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) DJHA | 310 PS

• VW Golf VII (Type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3) MQB) DLBA | 245 HP

• VW Passat B8 (3G) | Year 2014+ 1.8L TSI (EA888 Gen.3) CJSA | 180 PS

• VW Passat B8 (3G) | Year 2014+ 1.8L TSI (EA888 Gen.3) CJSC | 180 PS

• VW Polo VI (Type AW) | Year 2017+ 2.0L TSI (EA888 Gen.3B MQB) DKZC | 200 PS

• VW T-Roc Type A1 | Year 2017+ 2.0L TSI (EA888) CZPB | 190 PS (140 kW)

• VW Tiguan II (Type AD1) | BJ 2016+ 2.0L TSI (EA888 Gen.3) MQB) CHHB | 220 HP

• VW Tiguan II (Type AD1) | BJ 2016+ 2.0L TSI (EA888 Gen.3) MQB) CZPA | 180 HP

• VW Touran II (Type 5T) | BJ 2015+ 1.8L TSI (EA888 Gen.3) MQB) CJSA | 180 PS

• Škoda Karoq I (model NU7) | year 2017+ 2.0L TSI (EA888 Gen.3) MQB) DKZA | 190 PS (140 kW)

• Škoda Kodiaq I (NS7) | FY 2017+ 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 PS (162 kW)

• Škoda Kodiaq I (NS7) | FY 2017+ 2.0L TSI (EA888 Gen.3 MQB) CZPA | 180 PS (132 kW)

• Škoda Kodiaq I (NS7) | FY 2017+ 2.0L TSI (EA888 Gen.3 MQB) DKZA | 190 PS (140 kW)

• Škoda Octavia III (Type 5E) | FY 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CHHA | 230 PS
• Škoda Octavia III (Type 5E) | FY 2012-2019 2.0L TSI (EA888 Gen.3) MQB) CHHB | 220 HP

• Škoda Octavia III (Type 5E) | FY 2012-2019 2.0L TSI (EA888 Gen.3) MQB) DKZA | 190 HP

• Škoda Octavia III (Type 5E) | FY 2012-2019 2.0L TSI (EA888 Gen.3) MQB) DLBA | 245 HP

• Škoda Superb III (Type 3V) | Year 2015+ 2.0L TSI (EA888 Gen.3) MQB) CHHB | 220 HP

• Škoda Superb III (Type 3V) | Year 2015+ 2.0L TSI (EA888 Gen.3) MQB) CJXA | 280 HP

Ladermanufaktur GmbH stands behind their work and quality products by offering a 12-month warranty, giving you reassurance and confidence in your purchase.

Motorsport parts without road approval: We would like to explicitly point out that none of our parts offered for sale are original vehicle parts from the vehicle manufacturers BMW AG, M GmbH, MINI, VAG or other vehicle manufacturers. The naming of vehicle makes and models is only for the purpose of finding products and assigning them to the appropriate vehicle type.

A refundable core deposit is a temporary fee associated with Ladermanufaktur's remanufactured turbo upgrades. They use factory turbochargers as the base to build your custom upgrade, and in exchange, we require the return of your old turbocharger(s). You can choose to pay the deposit upfront and receive a full refund once you return your old turbocharger(s) within 30 days of receiving your upgrade. Alternatively, you can send in your turbocharger(s) for upgrading first and avoid the deposit altogether.

Core Deposit Process

After placing an order for a rebuilt turbocharger from Ladermanufaktur, we will contact you with further details. You will receive a follow-up invoice for the core deposit, which must be paid before we can purchase your turbocharger from Ladermanufaktur. This deposit reflects the difference in cost between rebuilt and new units and will be fully refunded once the core is returned and the refund is processed by Ladermanufaktur.

Customers may send in any turbocharger matching the part number listed in the compatibility section, regardless of condition, provided it is suitable for remanufacturing. Please note that turbochargers with visible damage or failed internal parts are unlikely to be reusable. Confirm your unit’s condition carefully to avoid paying for a fully remanufactured new unit while receiving a rebuilt older one.

You have the option to return your core directly to Ladermanufaktur or send it to us for handling on your behalf. If you choose to have us manage the return, an additional shipping fee will apply. To ensure your core is returned in optimal condition, please use the original box and packaging provided by Ladermanufaktur when you received your order.

DISCLAIMER: Please remove all additional accessories or hardware before sending in cores. Any remaining accessories or hardware will be discarded. Wastegate must stay attached if part of turbo housing.
