Öhlins Advanced Trackday Kit - BMW M2 F87 / M3 F80 / M4 F82

Experience the genuine thrill of racing with Öhlins’ Advanced Track Day kit, specifically designed for the BMW M F8x platform. Developed straight from GT and Touring-series cars, our Advanced Track Day dampers have undergone extensive track testing and tuning to ensure optimal performance for your track day pursuits.

When you’re pushing the limits on track, precision and control are paramount – especially when driving a fast car like the BMW M F8x. Our proven TTX technology gives you the confidence and control you need to reach top speeds. Plus, with ability to adjust both the compression and rebound damping, you can fine-tune your car’s handling characteristics and find the perfect racing line.

Transform your F8x into the ultimate race car and take your track days to the next level. With racing-calibre damping technology and technical features, the Öhlins Advanced Track Day kit delivers unparalleled performance and precision to help you dominate the track. Gear up to conquer every corner and set your fastest lap times yet—we’ll see you at the finish line.

NOTE: Cancellation kits, Springs, Camber Tops and brackets are not included and need to be ordered separately.

• TTX, a true twin tube design for cavitation free damping performance

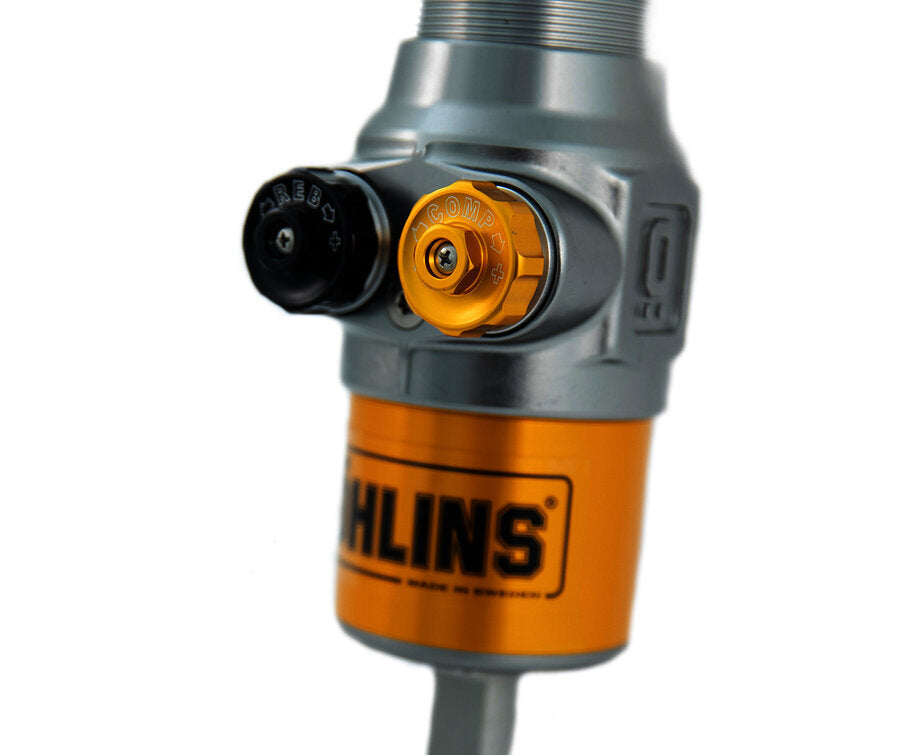

• 2-way fully independent rebound- and compression adjustment

• Tested and validated for R-compound tyres

• Rebuildable

• 2 year limited warranty

Features Front:

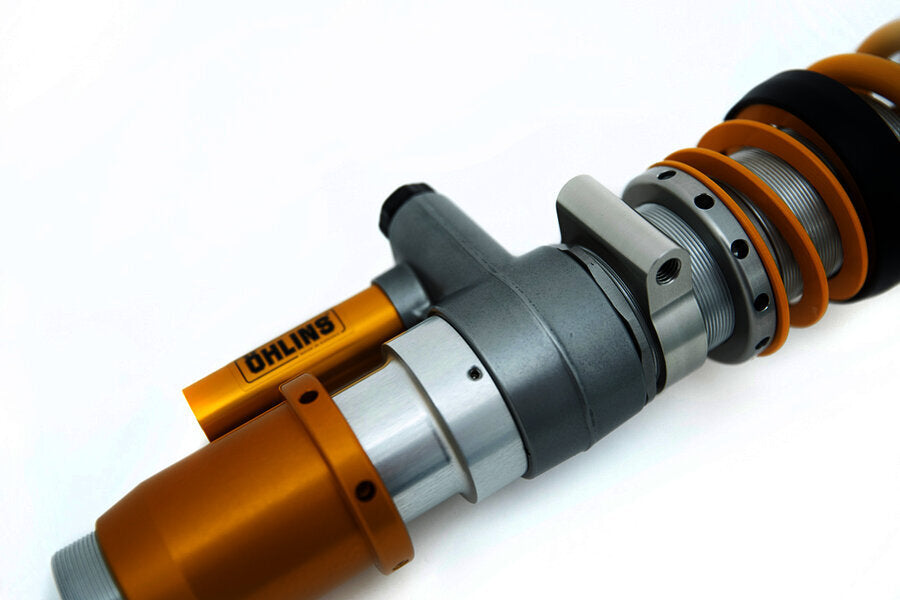

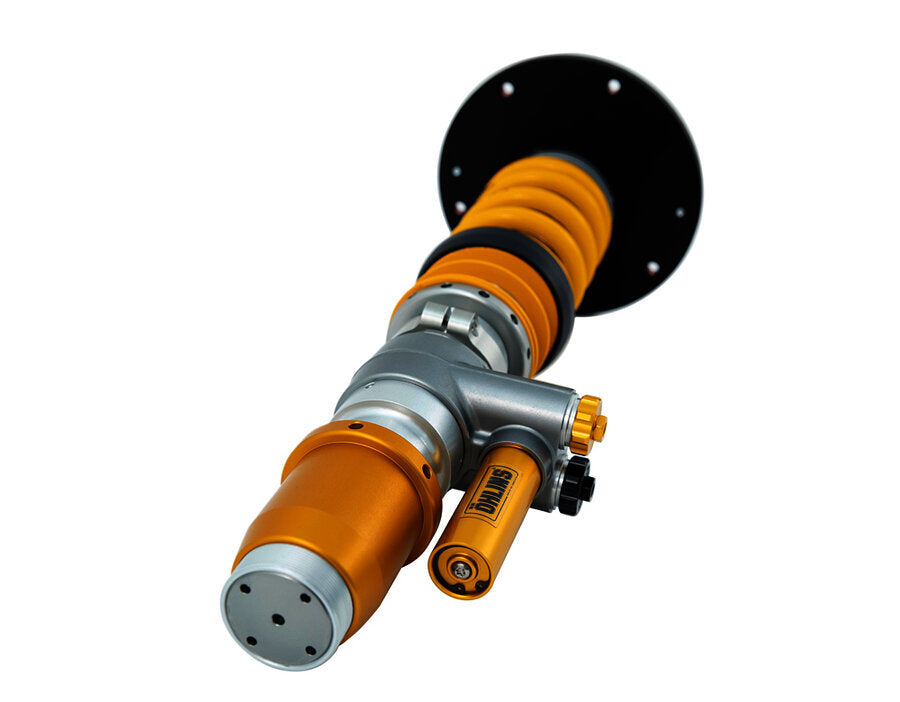

• Aluminum high strength, light-weight compact design McPherson strut

• Through rod design, for better response and driver feedback

• Length adjustable, available to adjust ride-height without affecting suspension travel

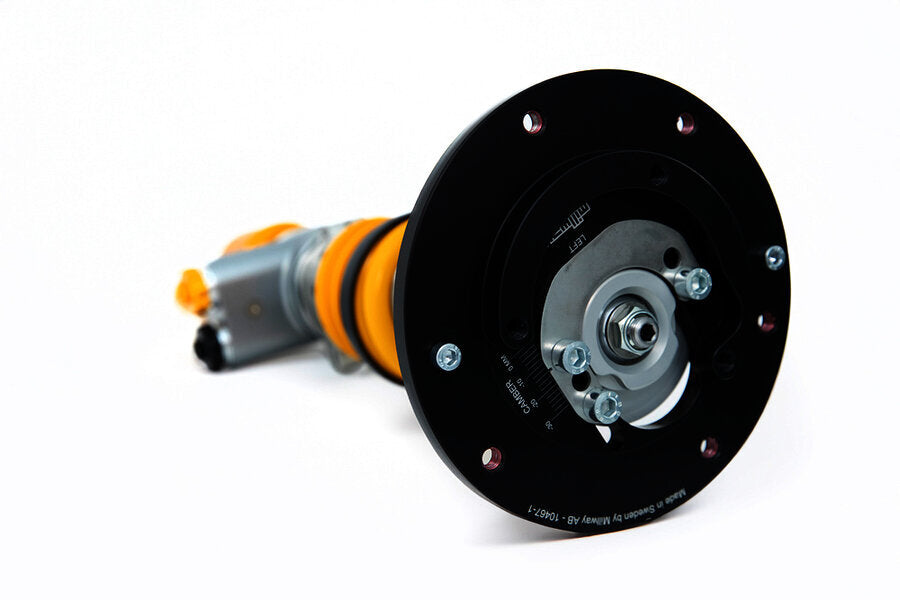

• Used with fully adjustable camber & caster top mounts, with spherical bearings.
• Specially designed by Öhlins & Millway

• Adjustable drop links with uniball

• Upgradeable to 3, 4 & 5-way adjustable including blow-off valve

Features Rear:

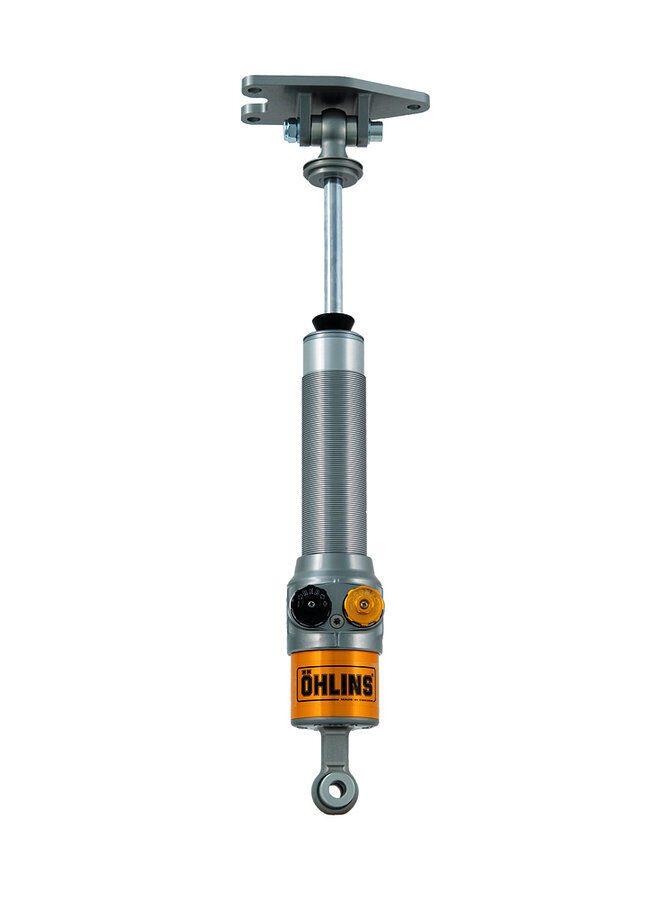

• Aluminium high strength, light-weight compact design shock absorber
• Separate spring preload adjuster

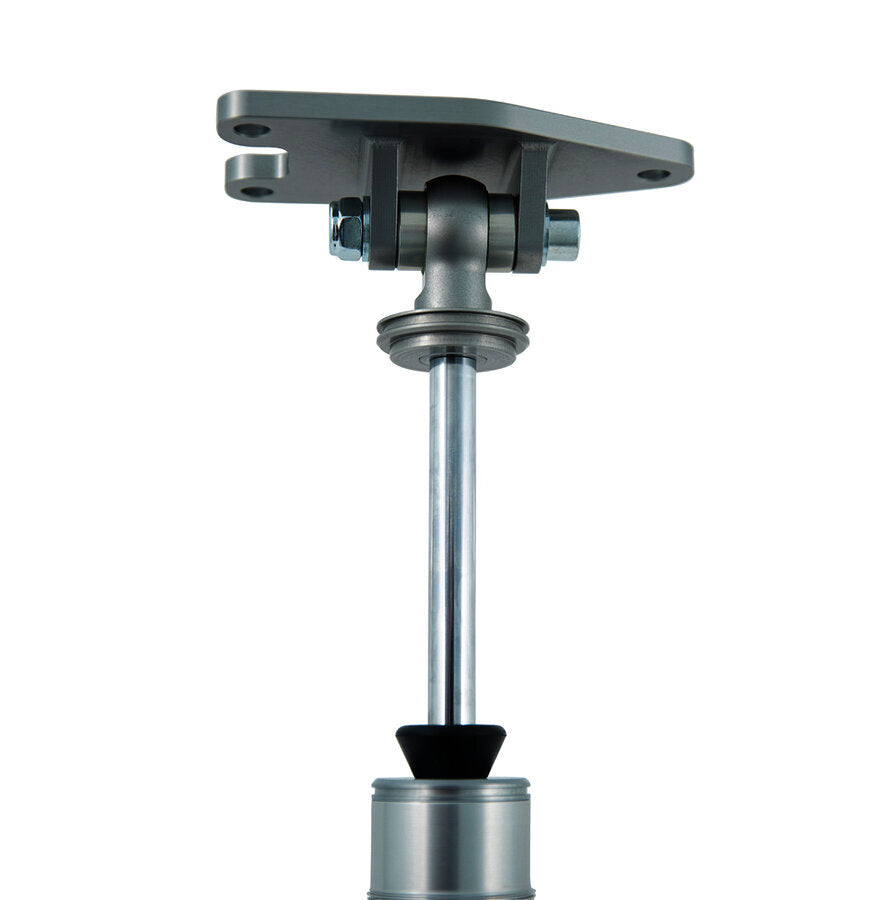

• Clevis design rear aluminium top mounts with spherical bearings
• Upgradeable to 3 or 4-way adjustable

• Coil over kit incl. four shock absorbers and installation hardware
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set
• Cancellation kits, Springs, Camber Tops and brackets are not included and need to be ordered separately.

EDC Cancellation Kits:

For cars equipped OE with electronic adjustable suspension Öhlins cancellation kit should be used. This kit ordered separately.

• 35020-02

• Owners Manual Öhlins Advanced Trackday Kit (English)
• Mounting Instruction Öhlins Automotive BMV MU21 (English)

BMW M2/M3/M4 (F8X)

Material: Aluminium
Oil: Öhlins 1304
TÜV: No

OPTIONAL RECOMMENEDATIONS

• Front top mounts and drop links BMW M2C/M3/M4 (F87/F80/F82), set
• Spring 60/140/140
• Rear top mounts BMW M2/M3/M4 (F87/F80/F82), set
• Spring 60/170/220
• Helper spring 61/7.5/60
• EDC bracket kit TTX BMW F8x
