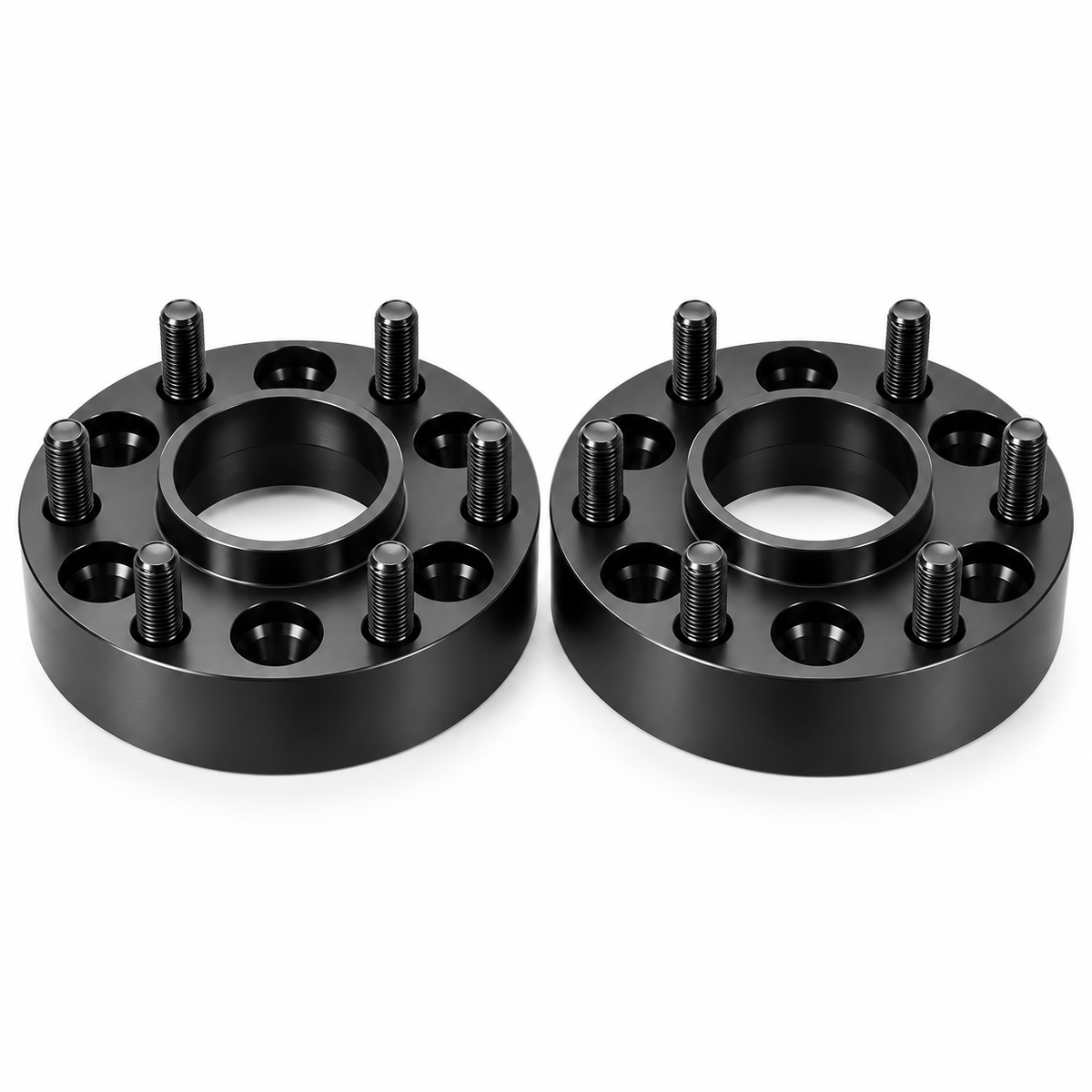

Bimecc 30 mm bolt-on spacer assemblies for compatible Toyota 4WD applications. Choose a pair for one axle or a set of four for front and rear.
Give compatible Toyota 4WDs a wider, more purposeful stance with a substantial 30 mm bolt-on spacer package. The bolt-on design secures the spacer to the original hub before the wheel is mounted to the spacer, making it well suited to applications where extra measured wheel or tyre clearance is required.
Why choose this Bimecc Spacer Kit?
-
Stronger visual stance: moves each wheel outward by 30 mm to better fill the arches.
-
Useful clearance: can provide additional room between the wheel or tyre and nearby suspension components when the complete setup is measured correctly.
-
Bolt-on construction: the spacer and wheel use separate fastening points rather than sharing an extended wheel stud.
-
Axle or vehicle options: choose a pair for one axle or four spacers for a complete setup.

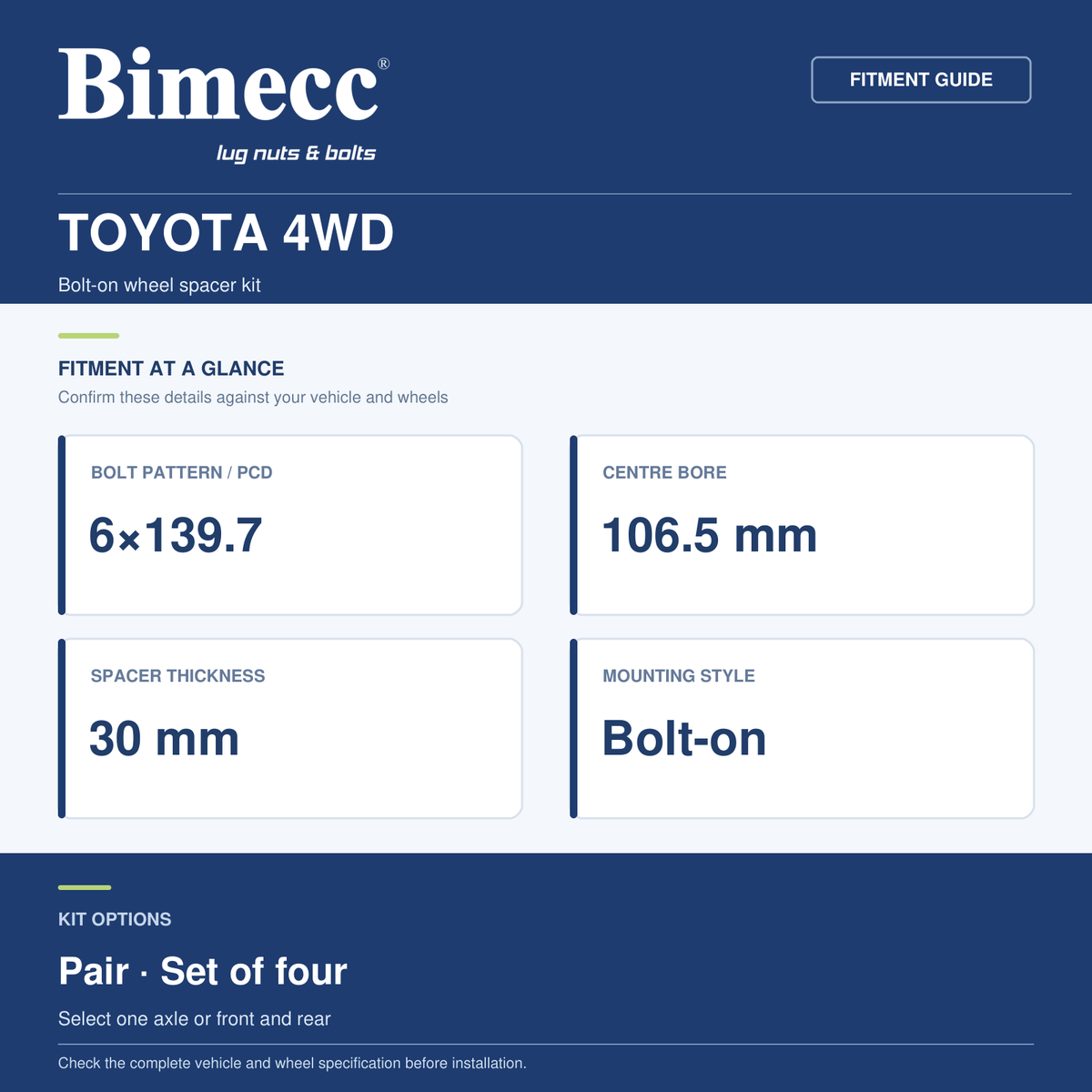

Fitment and Specification
-
Application: compatible vehicles and wheels using the exact specification shown below
-
PCD: 6x139.7
-
Centre bore: 106.5 mm
-
Thread: M12x1.5
-
Thickness: 30 mm
-
Mounting: Bolt-on assembly
Typical Applications: compatible Toyota 4WD models including selected Hilux, LandCruiser Prado and FJ Cruiser variants using 6x139.7 PCD, 106.5 mm centre bore and M12x1.5 hardware. Confirm the exact model and generation.
What is Included
-
Pair: two assembled 30 mm bolt-on spacers for one axle.
-
Set of Four: four assembled 30 mm bolt-on spacers for front and rear.
Fitment Note: Confirm PCD, centre bore, wheel-hardware thread and seat, brake/wheel clearance and safe thread engagement before installation. Aftermarket wheels can use a different seat from the factory wheel.
Installation: Wheel spacers and fasteners are safety-critical components. Installation should be completed by a competent technician, tightened to the vehicle/wheel manufacturer’s specification and rechecked after the initial bedding-in period.
Images show the product family and may show one size or finish from the range. The selected variant determines the exact supplied specification.
